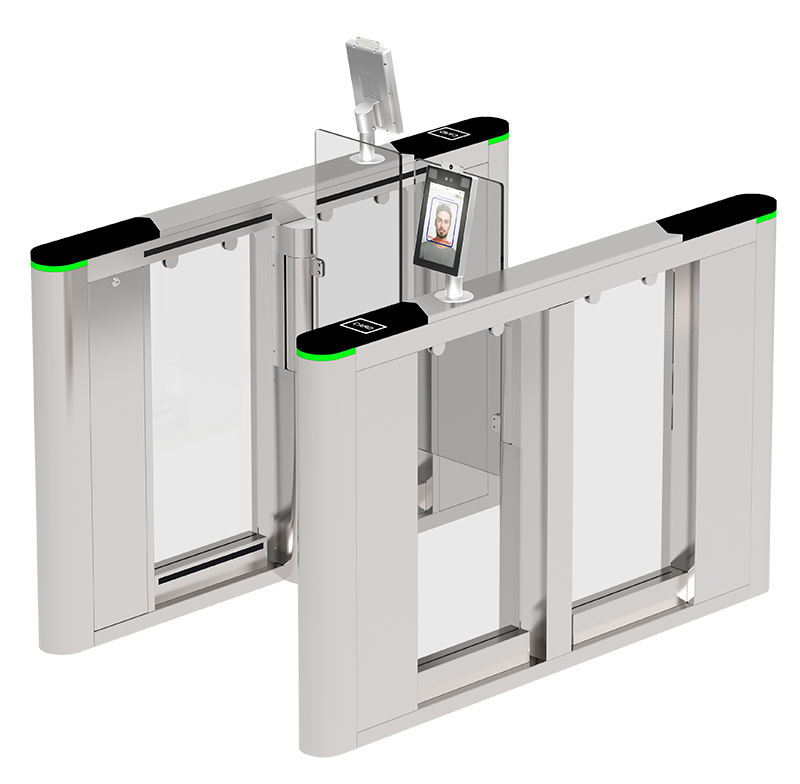

Touchless Speed Gate with Temperature Detection

Touchless Speed Gate with Temperature Detection

Touchless Indoor Speed Gate-based entrance control solution with body temperature detection functions. The device consists of stainless steel body for long-term usage and the barrier panels are made of acrylic for better aging resistance and impact resistance. The barrier is designed to match with indoor architecture and the transparent panels offer an elegant look.
The entrance control system is integrated with advanced facial recognition terminals featured with computer vision technology and smart facial recognition algorithms for masked-facial recognition. In addition, the device combines visible light facial recognition technology with infrared temperature detection for accurate and fast body temperature measurements during user-verification.
The entrance control system can be extremely helpful to facilitate the public in heavily crowded places such as hospitals, industrial areas, schools, public facilities, IT parks, etc as well as in reducing the spread of infections and germs.

Features:

  • Touch-free user identification
  • Promotes safety & hygiene
  • Fast & accurate verification at a wide range of angles
  • Body temperature detection & masked-facial recognition
  • The instant response of barrier panels upon successful authentication
  • 10 pairs of infrared sensors for stronger tailgate detection
  • Sturdy design with SUS304 stainless casing
  • Bi-directional operation control
  • LED direction indicator
  • Uninterrupted exit to safety during a power failure or emergency

Technical Specification:

Power Requirements

AC 100 ~ 120V/200 ~ 240V, 50/60Hz

Working Temperature

-28°C ~ 60°C

Working Humidity

20% - 95% (Non-condensing)

Working Environment

Indoor

Max. Speed of Throughput

40 people per minute

Lane Width (mm)

660

Dimensions (L*W*H)

1600 * 1040 * 1200 (mm)

Packing Dimensions (L*W*H)

1700 * 300 * 1130 (mm)

Net Weight (kg)

130kg

Weight with Packing (kg)

150kg

Cabinet Material

SUS304 Stainless Steel

Lid Material

SUS304 Stainless Steel & Acrylic

Barrier Material

Acrylic

Barrier Movement

Swing

Emergency Mode

Supported

Face Capacity

30,000 (1:N) / 50,000 (Optional)

Compatibility

900 MHz Dual Core Customized CPU

512MB RAM / 8G Flash

8" High Brightness (400lux) IPS Touch LCD

2MP WDR Low Light Camera

IP68 & IK04

Dimensions of Facial Recognition Device (H*L*D)

227 * 143 * 26 (mm)

Facial Recognition Distance of Masked Individuals

3m

Temperature Deviation

+/- 0.5 degrees

Body Temperature Detection Distance

25cm – 50cm

Body Temperature Detection Speed

>0.3s

Temperature Selection Posture Angle Tolerance

+/-30 degrees
